1. Overview
There are situations where, in addition to enforcing uniqueness, we also need a Set that maintains its elements in a defined sorted order. In this lesson, we’ll explore how TreeSet addresses this scenario, see how it works, review examples of its use, and discuss both its strengths and limitations.
The relevant module we need to import when starting this lesson is: treeset-sorted-set-and-natural-processing-start.
If we want to reference the fully implemented lesson, we can import: treeset-sorted-set-and-natural-processing-end.
2. TreeSet and Natural Ordering
A TreeSet is a self-balancing Red-Black tree that keeps every element in sorted order at all times. Compared to hash-based sets, operations like add, contains, and remove have higher costs, since the tree must maintain balance. The benefit is that iteration is always sorted, and we also gain access to nearest-element queries that hash-based sets cannot provide.
By default, a TreeSet relies on each element’s Comparable implementation. Strings, therefore, sort lexicographically, and integers sort numerically. We’ve presented natural ordering in the previous lessons.
Let’s open TreeSetUnitTest and add a new test method, whenUsingNaturalOrder_thenStringsSorted(), to validate TreeSet‘s natural order:
@Test
void whenUsingNaturalOrder_thenStringsSorted() {
TreeSet<String> languages = new TreeSet<>();
languages.add("es");
languages.add("fr");
languages.add("de");
List<String> ordered = new ArrayList<>(languages);
assertEquals(List.of("de", "es", "fr"), ordered);
}In this test, we created the languages variable, of type TreeSet, and inserted three language codes in scrambled order. Then, we validated that the three codes are stored in alphabetical order. Regardless of the insertion sequence, the tree maintains balance and ensures the elements are always in ascending order: de, es, fr.
3. Custom Comparator Sorting
Java provides ways to sort the objects of a TreeSet in a way different than their natural order. Similar to what we’ve seen for other collections in previous modules, we can use Comparator to do that by providing it as a TreeSet constructor parameter.
Since comparators were introduced in previous lessons, let’s see them in action straight away with a quick example:
@Test
void whenUsingTaskComparator_thenTasksSortedByCodeLength() {
Comparator<Task> byCodeLength = Comparator.comparingInt(t -> t.getCode().length());
TreeSet<Task> tasks = new TreeSet<>(byCodeLength);
tasks.add(new Task("02", "B", "B", null));
tasks.add(new Task("010", "C", "C", null));
tasks.add(new Task("1", "A", "A", null));
List<String> codes = new ArrayList<>();
for (Task task : tasks) {
String code = task.getCode();
codes.add(code);
}
assertEquals(List.of("1", "02", "010"), codes);
}First, we create a comparator that compares by code length. Then, we pass the comparator as an argument to the TreeSet constructor. So the elements are always kept in order by code length, and shorter codes appear first in the iteration.
Naturally, when a custom comparator is provided, TreeSet will ignore the natural ordering of the elements.
4. Range-View and Nearest Element Operations
As we’ll see more clearly in the next section, TreeSet implements the NavigableSet interface, which itself extends SortedSet. These APIs provide useful methods for working with sorted collections and for navigating elements based on proximity to a target value.
Let’s explore some of the most useful methods provided by these interfaces:
- From SortedSet:
- first(), returns the lowest element
- last(), returns the highest element
- subSet(from, to), returns a view of elements from from (inclusive) to to (exclusive)
- headSet(to), returns a view of elements strictly less than to
- tailSet(from), returns a view of elements greater than or equal to from
- From NavigableSet:
- lower(e), greatest element strictly less than e
- floor(e), greatest element less than or equal to e
- ceiling(e), least element greater than or equal to e
- higher(e), least element strictly greater than e
- pollFirst(), retrieves and removes the lowest element
- pollLast(), retrieves and removes the highest element
- Overloaded subSet(), headSet(), tailSet() -> allow control of inclusivity/exclusivity of bounds
Finally, note that these range methods return live views backed by the original set. This means that updates in the view are reflected in the underlying TreeSet, and vice versa. Let’s see a quick example:
@Test
void whenUsingRangeQueries_thenCorrectElementsReturned() {
TreeSet<Integer> scores = new TreeSet<>();
scores.add(55);
scores.add(70);
scores.add(85);
scores.add(95);
scores.add(100);
Integer floor = scores.floor(73);
assertEquals(70, floor);
Integer ceiling = scores.ceiling(73);
assertEquals(85, ceiling);
SortedSet<Integer> mid = scores.subSet(70, true, 95, false);
assertEquals(List.of(70, 85), new ArrayList<>(mid));
}The tree returns the floor and ceiling of the set of values correctly. Then, it locates the elements between 70 inclusive and 85 exclusive and exposes the subset view backed by the original set.
5. Comparing HashSet and LinkedHashSet to TreeSet

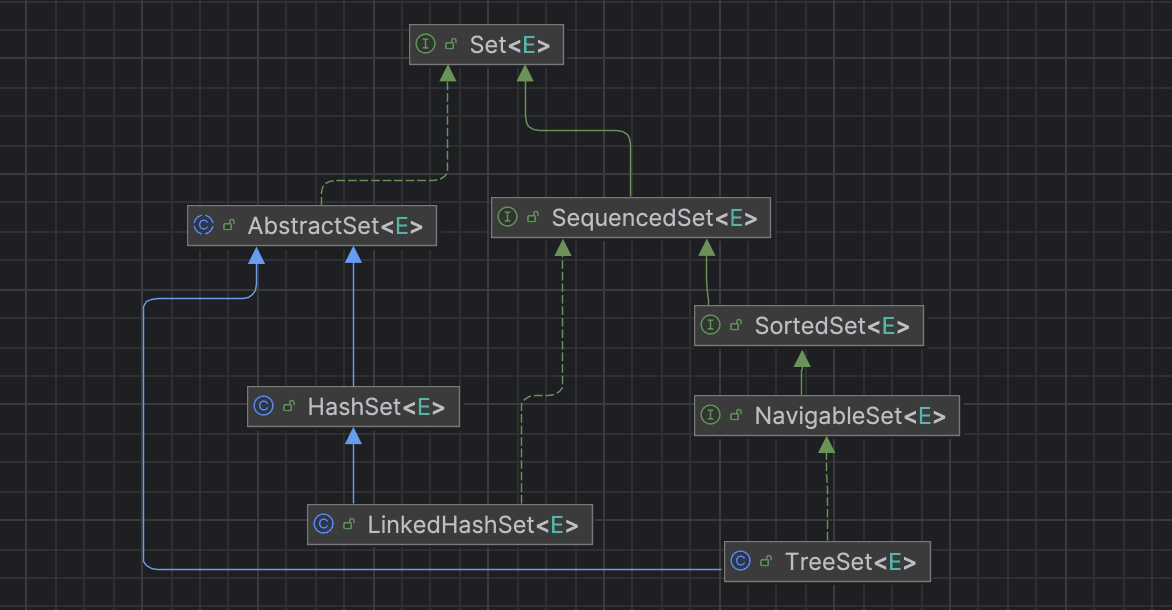

Let’s start by examining the classes diagram for the three different Set structures, so that we can better visualize the differences between all of them:
To sum up the key points of the three main Set implementations:
- All three extend AbstractSet.
- LinkedHashSet and TreeSet both implement the SequencedSet interface, which provides methods like getFirst() and getLast().
- TreeSet is unique in also implementing SortedSet and NavigableSet, which give it ordering and range-query capabilities.
In practice, hash-based sets (HashSet and LinkedHashSet) are faster for basic add/remove operations, but they don’t keep elements sorted. TreeSet trades some write performance for maintaining sorted order at all times.
We can illustrate this by adding the same data into all three sets:
@Test
void whenComparingThreeSets_thenOrdersDiffer() {
List<String> data = List.of("es", "fr", "de");
Set<String> hash = new HashSet<>(data);
List<String> hashOrder = new ArrayList<>(hash);
LinkedHashSet<String> linked = new LinkedHashSet<>(data);
List<String> linkedOrder = new ArrayList<>(linked);
TreeSet<String> tree = new TreeSet<>(data);
List<String> treeOrder = new ArrayList<>(tree);
assertNotEquals(hashOrder, linkedOrder);
assertNotEquals(linkedOrder, treeOrder);
assertEquals(List.of("de", "es", "fr"), treeOrder);
}Here, the TreeSet produces elements in sorted order (de, es, fr).
In contrast, HashSet provides no ordering guarantee, and LinkedHashSet preserves insertion order — so their orders differ from the TreeSet.
6. Practical Use-Case Example: Live Leaderboard
A game leaderboard must stay sorted as scores change. Let’s use a TreeSet to accomplish this:
@Test
void whenBuildingLeaderboard_thenTopScoresDescend() {
TreeSet<Integer> scores = new TreeSet<>(List.of(68, 42, 73, 91, 55));
Iterator<Integer> it = scores.descendingIterator();
List<Integer> topThree = List.of(it.next(), it.next(), it.next());
assertEquals(List.of(91, 73, 68), topThree);
}The scores TreeSet, combined with a descending iterator, lets us retrieve the top scores directly in descending order. This avoids the need for an additional sort step, since the set always maintains elements in sorted order.
7. Performance and Pitfalls
Like every other Java data structure, TreeSet comes with some weak points:
- Each insert or delete may trigger tree rebalancing; avoid TreeSet for very write-heavy, order-insensitive data.
- A custom comparator must be consistent with equals; otherwise, logically equal elements may appear as duplicates, or distinct elements may be treated as the same.
- TreeSet is not thread-safe.
- Do not mutate the fields of an element that are used in comparison; changing the values that the comparator or natural ordering relies on after insertion can corrupt the tree’s ordering and lead to unpredictable behavior.
8. Choosing Among Set Implementations
Closing this lesson, let’s compare TreeSet with the other Java Set structures we’ve learned so far:
| Requirement | Best Choice | Typical Performance (lookup / insertion) | Notes |
|---|---|---|---|
| Pure uniqueness, no order | HashSet | Constant time, independent of set size | Lowest memory use, fastest inserts and lookups |
| Uniqueness + insertion order | LinkedHashSet | Constant time, independent of set size | Preserves insertion order with slight memory overhead |
| Uniqueness + always-sorted order/ ranges | TreeSet | Slower, performance depends on set size | Extra memory use, slower writes, but supports sorted order and range queries |
Use a TreeSet when you need elements delivered in sorted order, nearest-element queries, or live range views. In most other cases, a hash-based set will be faster and lighter.
