Linux Display Managers (LightDM, SLiM, XDM, GDM, SDDM, KDM, Ly): Install and Uninstall Guide

1. Introduction

The display manager (DM) is a graphical user interface (GUI) front-end for login information entry, which then often directs to an actual full-fledged GUI.

In this tutorial, we go over some top choices for display managers. First, we go through the hierarchy of displays and GUI options. After that, we proceed by looking at examples of graphical, console, and terminal interface examples of display managers.

For all installation, management, and removal procedures, we use root or sudo privileges. In many GUI cases, a system needs to boot to the graphical.target for a DM to work.

We tested the code in this tutorial on Ubuntu 22.04 (Jammy) with GNU Bash 5.2.15. It should work in most POSIX-compliant environments unless otherwise specified.

2. Display and GUI Hierarchy

Display servers like X11, Wayland, Mir are the middleware between the kernel and upper-level components:

+---------------------------------------+
|          Desktop Environment          |
+-----------------------------+---------+
         ^                    ^         ^
         v                    v         |
+--------+--------+  +--------+-------+ |
| Display Manager |<>| Window Manager | |
+-----------------+  +----------------+ |
                  ^  ^                  |
                  v  v                  v
+---------------------------------------+
|                                       |
|            Display Server             |
|                                       |
+---------------------------------------+
                    ^
                    v
+---------------------------------------+
|                Kernel                 |
+---------------------------------------+

Near the top of the hierarchy, we can have a window manager (WM), a desktop environment (DE), or both.

Before that is usually a display manager (DM). In a way, display managers are login managers, as they are daemons that often comprise several components:

• login screen, i.e., greeter
• optional WM or DE selector
• optional session type selector
• remote options

Because of their decoupling, we can decide on a display manager irrespective of the WM and DE. Still, several major desktop environments come with their own DM.

To facilitate this, modern systemd distributions provide the configurable display-manager.service, which can be modified to run many different display managers. Further, /etc/X11/default-display-manager usually shows the current selection, and dpkg-reconfigure facilitates changes.

Importantly, we should make sure display managers don’t end up in conflict, so stopping, disabling, or modifying the display-manager.service and any other DM is part of the best practices when switching. Further, we should ensure the system doesn’t rely on a given DM before disabling or uninstalling it.

3. LightDM (Lightweight Display Manager)

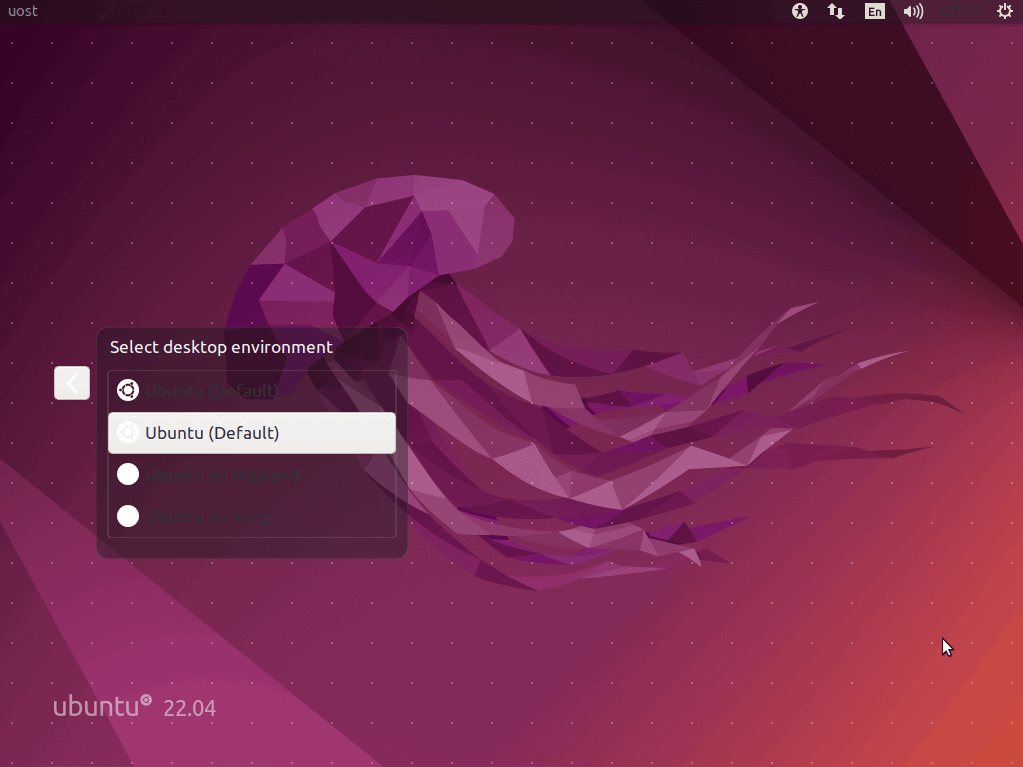

The cross-desktop lightweight display manager LightDM is independent of any DE:

It has several main features:

• support different display servers
• no GNOME dependencies
• support GTK and Qt
• low memory requirements
• fast performance
• remote login via XDMCP and VNC
• guest sessions

Now, let’s work with LightDM.

3.1. Install and Configure

To install LightDM, we use apt to install the lightdm package:

$ apt-get install lightdm

Although it doesn’t have its own greeter, there are many to choose from such as lightdm-gtk-greeter, lightdm-pantheon-greeter, lightdm-slick-greeter, and lightdm-slick-greeter:

$ apt-get install lightdm-gtk-greeter

After that, we can configure via the /etc/lightdm/lightdm.conf file or component files within /etc/lightdm/lightdm.conf.d/.

Next, we set LightDM as the current display manager with dpkg-reconfigure:

$ dpkg-reconfigure lightdm

At this point, if our configuration is adequate, we should be able to use LightDM after the next reboot.

3.2. Disable and Uninstall

Alternatively, we can revert our dpkg-reconfigure choices.

If run as a service, we can control any DM:

$ systemctl stop lightdm.service
$ systemctl disable lightdm.service

In this case, we use systemctl to stop and disable LightDM.

As usual, we can remove LightDM with apt:

$ apt-get remove lightdm

It’s often good to first ensure we don’t rely on it.

4. SLiM (Simple Login Manager)

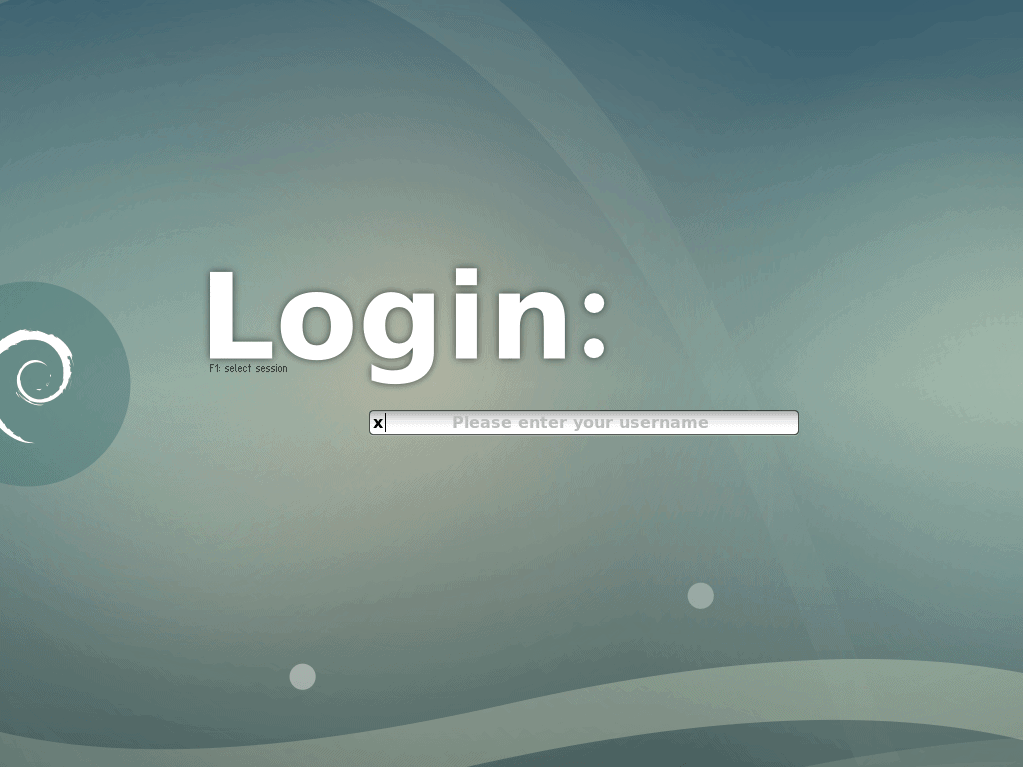

The Simple Login Manager (SLiM) is mainly tailored for X11:

It supports several specific features:

• DE-independent
• external theming
• external configuration
• PNG panel customization
• PNG and JPEG backgrounds
• standard XFT and freetype fonts

First, let’s install SLiM.

4.1. Install and Configure

To install SLiM, we use the slim package:

$ apt-get install slim

The self-explanatory configuration file is at /usr/etc/slim.conf.

After setup, we can start slim as a [-d]aemon:

$ slim -d

Either way, SLiM runs $HOME/.xinitrc by default, so a correct configuration there is paramount.

4.2. Disable and Uninstall

We can stop and disable SLiM in the usual manner:

$ systemctl stop slim.service
$ systemctl disable slim.service

If the DM doesn’t work out, we can remove the package:

$ apt-get remove slim

Now, let’s move on to an alternative solution.

5. CDM (Console Display Manager)

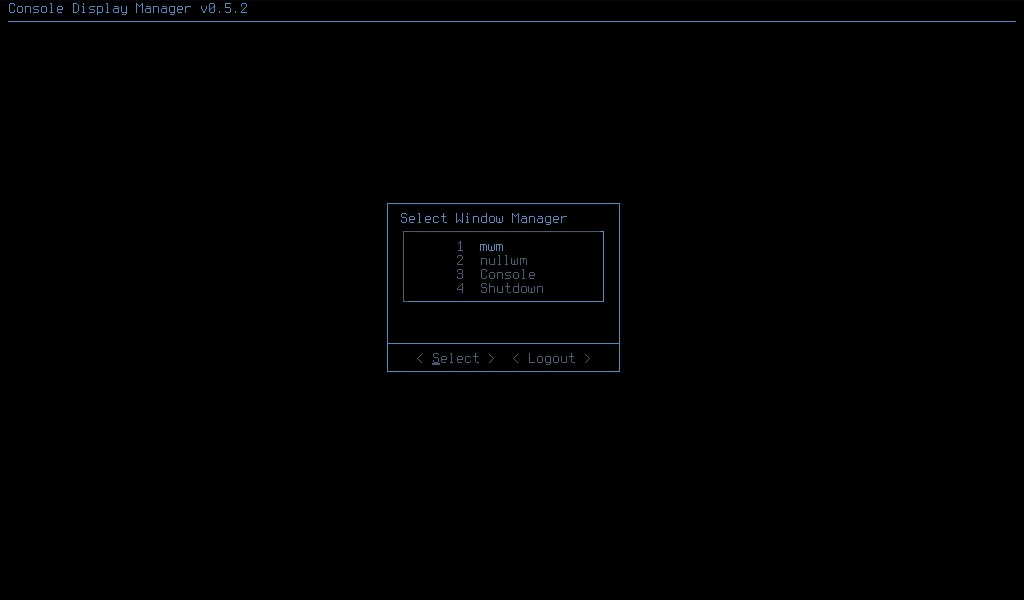

The Console Display Manager (CDM) is minimalistic and fast:

Its main forte is minimalism, but it does have features:

• X11-independent
• pure Bash
• extremely small footprint
• minimal dependencies
• multi-user
• multi-session
• works with any DE or WM

To begin with, we can get and deploy CDM.

5.1. Install and Configure

To install CDM, we download or clone the latest repository content and run install.sh:

$ bash install.sh

The configuration can be in one of several files, in order of precedence:

• direct input RC file
• $HOME/.cdmrc
• $XDG_CONFIG_HOME/cdm/cdmrc
• /etc/cdmrc

Initially, we can run CDM by hand:

$ cdm <RCFILE>

However, to start CDM automatically, we append /usr/share/doc/cdm/profile.sh to our profile:

$ cat /usr/share/doc/cdm/profile.sh >> $HOME/.profile

It’s usually best to back up our original profile before making changes.

5.2. Disable and Uninstall

To begin with, reverting the .profile additions is very important if we want to disable or remove CDM.

After doing so, we can use the provided uninstall.sh script:

$ bash uninstall.sh

At this point, CDM should be unavailable.

6. XDM (X Display Manager)

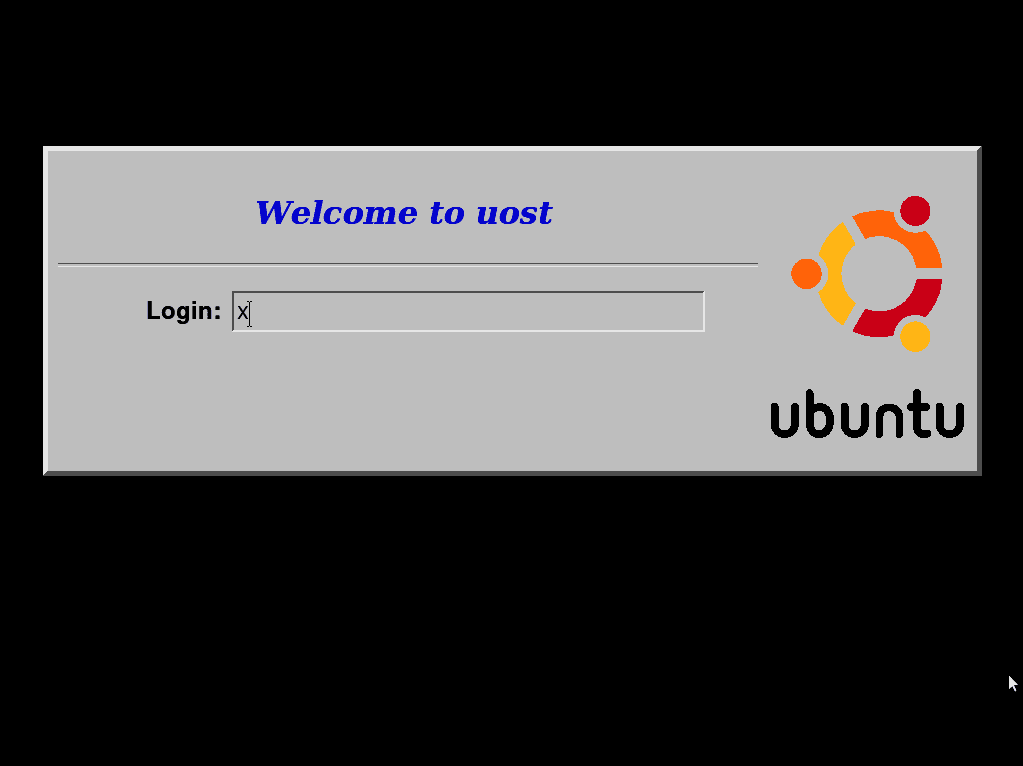

The X Display Manager (XDM) is the native DM for X11:

Its features are basic but stable:

• XDMCP support
• remote login

Because it’s so rudimentary but fundamental, XDM is usually available but unused on most systems.

6.1. Install and Configure

To install XDM, we use the xorg-xdm package:

$ apt-get install xorg-xdm

Critically, XDM is incompatible with other major display managers.

Still, to ensure XDM is the active DM, we can use dpkg-reconfigure:

$ dpkg-reconfigure xdm

Unlike many of its modern counterparts, XDM only executes the $HOME/.xsession file, which is expected to run the actual desktop environment.

Despite this, XDM is very configurable via resource files and shell scripts.

In case of issues, we can check the /var/log/xdm.log log file.

6.2. Disable and Uninstall

Same as with others, we can disable XDM via its service:

$ systemctl stop xdm.service
$ systemctl disable xdm.service

Since we installed it as a package, we can also remove it with apt:

$ apt-get remove xorg-xdm

Naturally, configuring a replacement display manager should now be a priority.

7. Ly

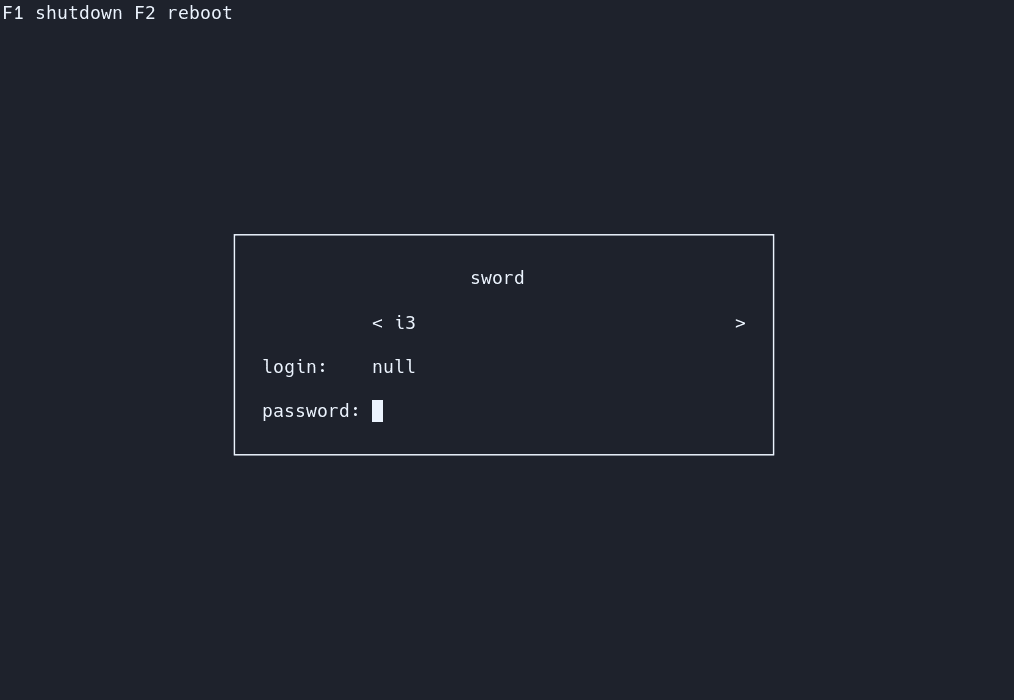

The Ly terminal user interface (TUI) display manager has a vast array of tested desktop environments that includes all major ones:

Let’s check its features:

• lightweight
• robust
• ncurses-like (no ncurses dependency)
• very basic dependency list
• written in C

This display manager is a mix between options like CDM and the high-end LightDM.

7.1. Install and Configure

To install Ly, we first ensure all dependencies are in place:

$ apt-get install build-essential libpam0g-dev libxcb-xkb-dev

After that, we download or clone the latest repository content with –recurse-submodules and then use make.

$ make

At this point, Ly is ready for deployment.

Should we want to try it out first, we can do so via run:

$ make run

Once ready, we can install the provided systemd service file:

$ make install installsystemd

Then, we enable the service:

$ systemctl enable ly.service

To support TTY switching, we usually need to disable the getty service:

$ systemctl disable [email protected]

The self-explanatory configuration file resides at /etc/ly/config.ini.

7.2. Disable and Uninstall

Since it’s a systemd service, we can control Ly with systemctl:

$ systemctl stop ly.service
$ systemctl disable ly.service

To remove Ly, we can use the uninstall target:

$ make uninstall

Notably, we may want to reenable the getty service.

8. Simple Desktop Display Manager (SDDM) and KDE Display Manager (KDM)

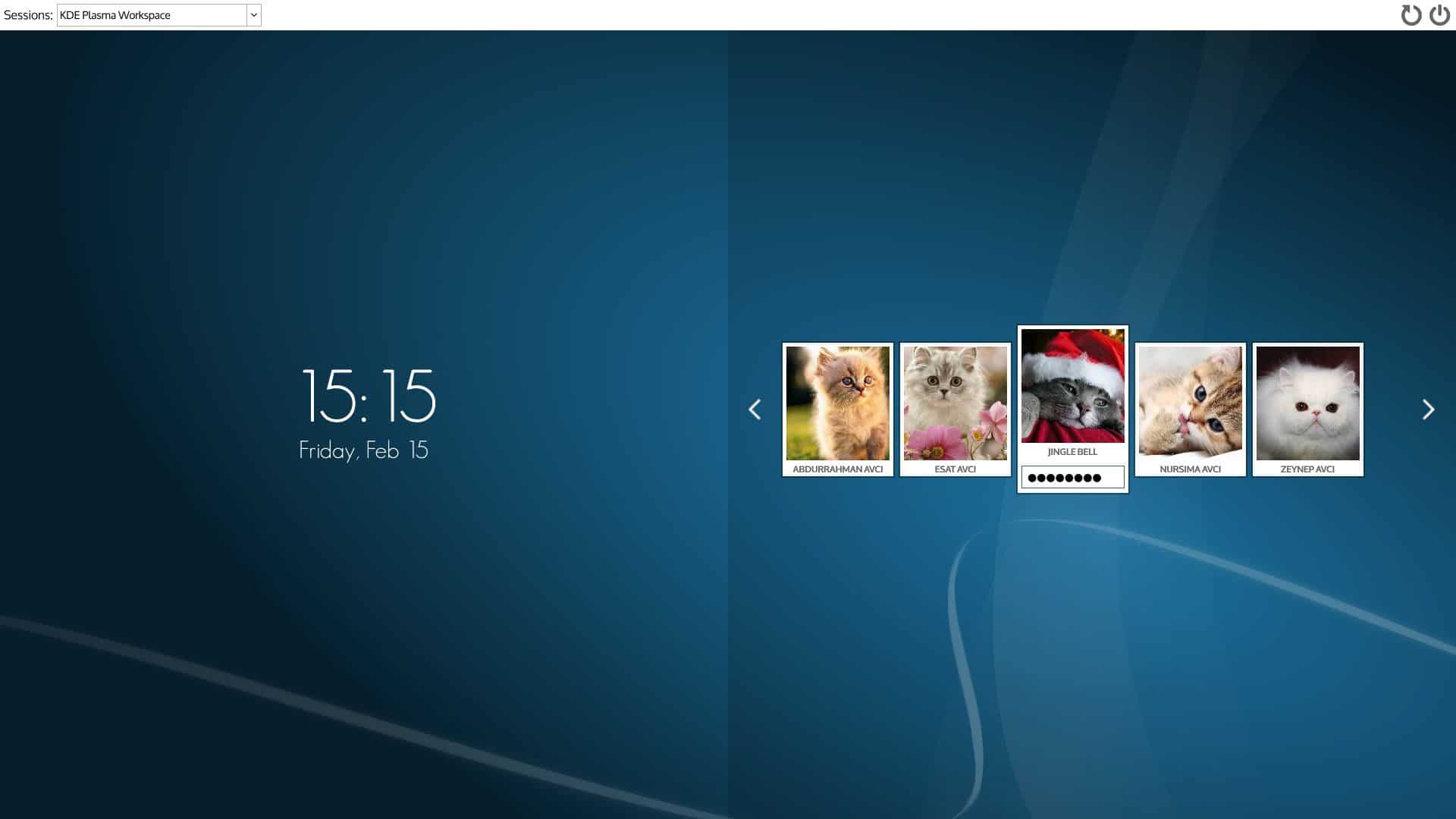

The Simple Desktop Display Manager (SDDM) is the successor and replacement of the KDE Display Manager (KDM):

It offers some special features:

• support X11 and Wayland
• autologin
• modern and prettified look
• DPI settings (HiDPI)
• highly customizable
• Qt-based

So, let’s see the installation, management, and removal procedures for SDDM.

8.1. Install and Configure

Initially, to install SDDM, we use apt:

$ apt-get install sddm

Then, we ensure it’s selected as the current DM with dpkg-reconfigure:

$ dpkg-reconfigure sddm

Usually, the configuration file is /etc/sddm.conf:

$ cat /etc/sddm.conf
[...]
[Autologin]
User=<USERNAME>
Session=<DENAME>.desktop
Relogin=false

Here, we replace the USERNAME and DENAME with the appropriate user and desktop environment names.

In addition, /usr/lib/sddm/sddm.conf.d/ and /etc/sddm.conf.d/ may also contain settings.

8.2. Disable and Uninstall

Let’s stop and disable SDDM:

$ systemctl stop sddm.service
$ systemctl disable sddm.service

Then, we can uninstall:

$ apt-get remove sddm

At this point, we should pick a new DM.

9. GNOME Display Manager (GDM)

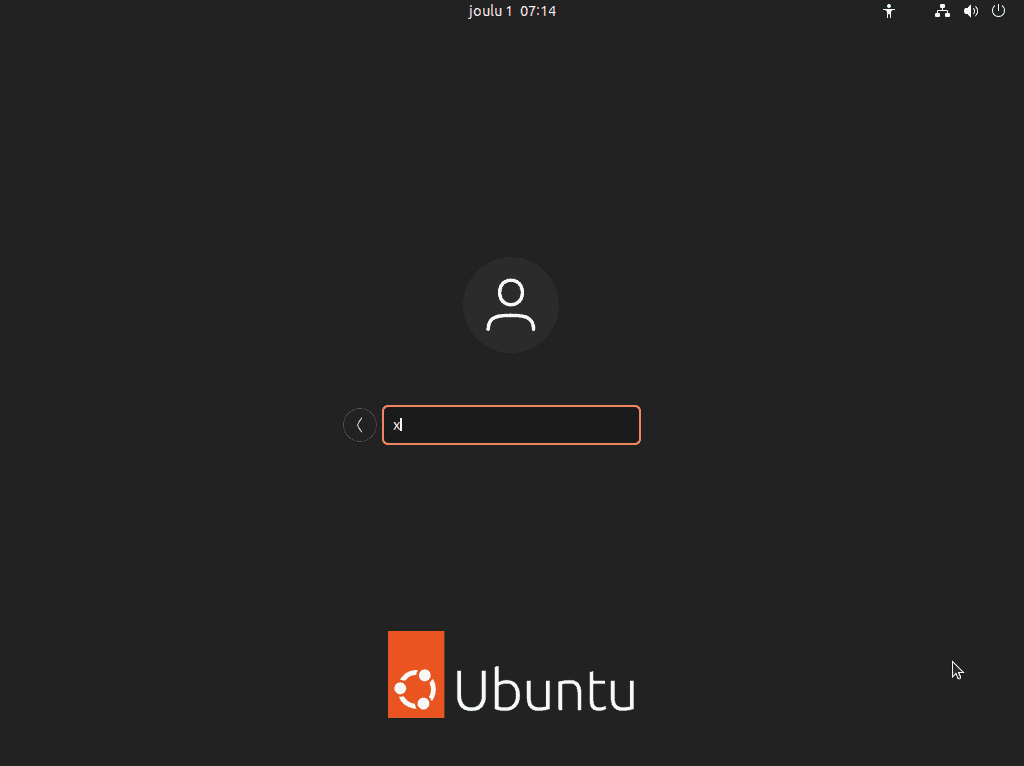

The GNOME Display Manager (GDM) is the native DM for the GNOME DE but works with many other desktop environments as well:

GDM has a number of features:

• robust
• written from scratch
• WM and DE selector
• user assist
• XDMCP support
• face browser (image user selection)
• comprehensive logging

The latest iteration of GDM as of this writing is GDM3.

9.1. Install and Configure

First, let’s install GDM:

$ apt-get install gdm3

Next, we can configure any desired settings in /etc/gdm/gdm.conf.

Then, we can set it as the current DM:

$ dpkg-reconfigure gdm3

Naturally, we should ensure there is support for our DE and no conflict with other display managers.

9.2. Disable and Uninstall

Again, we can manipulate the GDM service:

$ systemctl stop gdm3.service
$ systemctl disable gdm3.service

To uninstall, we employ apt:

$ apt-get remove gdm3

In case of issues, we can check the logs in /var/log/gdm or $HOME/.cache/gdm.

10. LXDM

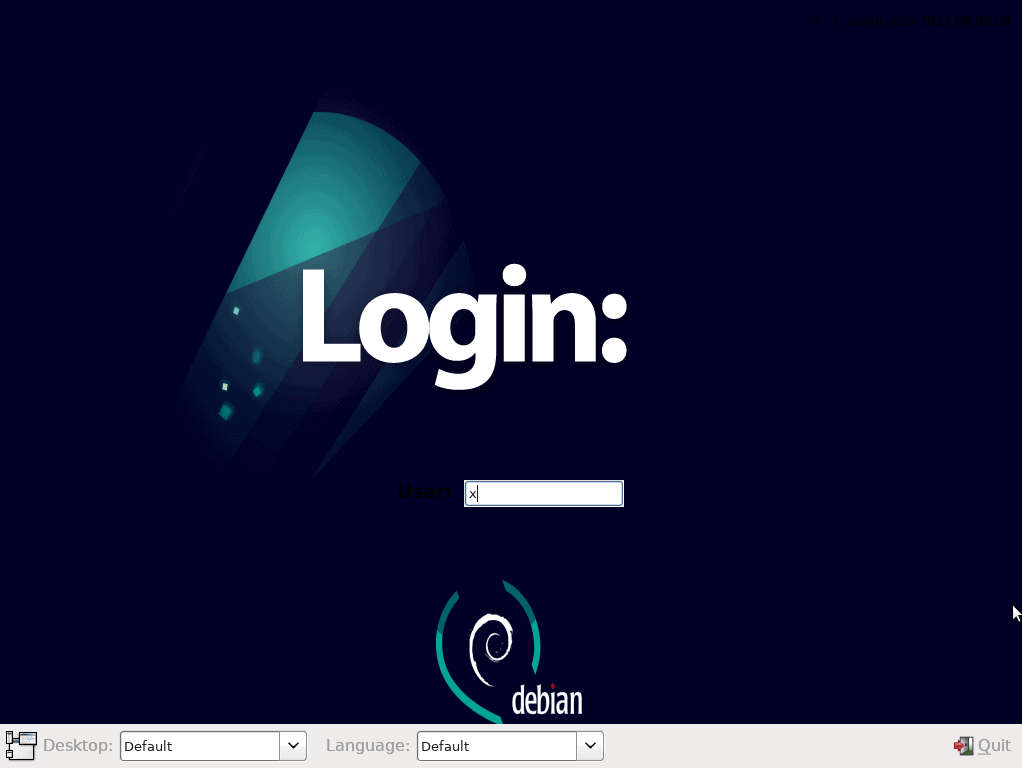

The LXDM display manager is a lightweight alternative to major display managers:

It has no support for XDMCP and a very rudimentary featureset:

• autologin
• basic theming
• individual user preferences
• face icons

Although basic, this is the native DM for the minimalist LXDE desktop environment.

10.1. Install and Configure

To install LXDM, we use the lxdm or lxdm-gtk3 packages:

$ apt-get install lxdm || apt-get install lxdm-gtk3

As usual, dpkg-reconfigure can set this new DM as the default:

$ dpkg-reconfigure lxdm

All configuration files are under /etc/lxdm/ with the main one being /etc/lxdm/lxdm.conf.

10.2. Disable and Uninstall

To stop and disable, we use the lxdm.service:

$ systemctl stop lxdm.service
$ systemctl disable lxdm.service

An uninstall can be performed via the package:

$ apt-get remove lxdm || apt-get remove lxdm-gtk3

Overall, LXDM is a good option for lightweight environments.

11. Summary

In this article, we talked about display managers, their role, and several specific examples along with their installation, configuration, and uninstallation procedures.

In conclusion, the choice of a display manager depends less on the desktop environment and more on the needs of the user.
